Product Name

eManager Active Directory Link


Category

VoIP system management products

  • Auto deployment
  • Configuration of user properties

Functions

Initial setup of users

  • Setting config template based on related AD group
  • Optional setting user password and sending mail
  • Setting homescreen apps

Regular sync of users

  • Update template
  • Assign softphone
  • Assign hardphone
  • Assign DECT device
  • Configure mobility
  • Manage hunt groups and assign users (static/dynamic with key)
  • Manage pickup groups and assign users (including key)
  • Manage additional groups (for example TAPI or ACD groups)
  • Define internal and external send number

Version

1.2.3

Vendor

effexx its GmbH

Description

Users can be deployed and configured in various ways, such as with the built-in Active Directory (AD) replicator by innovaphone. Since this replicator is limited in applying a configuration template, groups, and more based on AD settings, we developed a tool called eManager to expand the replicator’s capabilities. The eManager is installed on a Windows Server system using IIS. It functions similarly to the replicator: synchronization from AD to PBX is performed cyclically in the background. After the initial configuration, the end user (customer) doesn’t need to take any further action other than configuring AD with the appropriate attributes and groups.

Competitive Analysis

If a customer wants to manage pickup groups using AD, they can create groups in Active Directory with the naming format ‘eManager_Pickup_GroupName’. After a user is added to this group, eManager creates a corresponding PBX group, adds all PBX users to it and creates a pickup key. Neither the systems integrator nor the customer needs to configure anything on the PBX for this group.

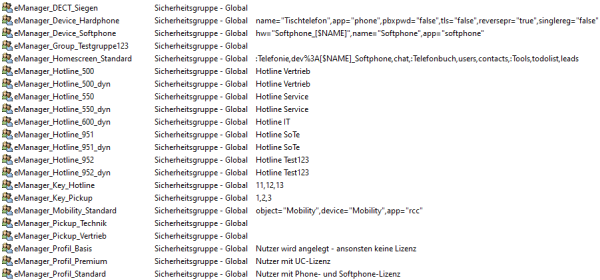

Active Directory Groups:

User MemberOf:

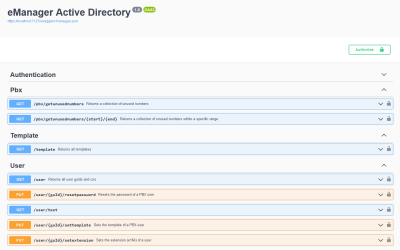

In project context we also provide REST based API calls for example to query unused numbers, resetting passwords and so on:


Prerequisites

  • Windows Server 2019 or above
  • HTTP PBX admin user (HTTPs port is open)
  • Active Directory user with read permission (LDAPs port is open)
  • Optional SMTP user (sending anonymously is possible) (SMTP port is open)

Configuration

The product will be installed by an effexx software expert and afterwards configured using the credentials for PBX, Active Directory and end customer preferred settings.

For example the optional mail configuration is as follows:

 "Mail": {
 "Host": "",
 "Port": 25,
 "Anonym": false,
 "AnonymSendAddress": "noreply@example.com",
 "AnonymSendName": "myApps login",
 "UserName": "",
 "CypherPwd": "",
 "Iv": "",
 "Subject": "your new calling password",
 "Header": "Dear user,",
 "Message": "Your new telephone password is as follwos: [pwd].[linebreak]Please use this one your phone or myApps.",
 "Footer": "The inbox is not monitored; please do not reply to this message."
 }



Pricing

We provide an installation with a three month trial period for two purposes:

  • System integrator wants to test functionality and learn about eManager
  • End customers wants to have a PoC setup before placing an order

The product is sold with one-time costs based on PBX user count. The API functionality is optional and conditions are agreed upon individually

Contact

effexx its GmbH
Obere Industriestraße 8
57250, Netphen
Tel: +49 271 7095 0
Mail: apps@effexx.com
