Howto:Fanvil IP Phones-Fanvil-3rd Party Product

Product Name

Vendor

About us

Fanvil Technology Co., Ltd. (Fanvil) is a leading global provider of Audio&Video-IoT (A&V-IoT) devices. With three R&D centers in Beijing, Shenzhen, and Suzhou, China, Fanvil has compiled an effective team of R&D, production, sales, and service staff to innovate and add value to our business partners. As the pioneer in applying standardized network communication technology and Audio&Video technologies to build A&V-IoT, Fanvil is boosting the digital transformation for multiple industries.

Functions

Initiate outgoing call yes
Answer incoming call yes
Hold/Retrieve yes
Transfer yes
Call waiting yes
Do not disturb yes
Call Conference yes
Call Park yes
Voice Messages Center
Call Forward and divert yes
Intercom (HS to HS)
Called, calling, and connected party information yes
Missed-call notification yes
1-touch speed dial yes
Redial yes
Zero touch provisioning, management, configuration and remote debugging yes
BLF yes

innovaphone Reverse Proxy Ready

STUN yes

Note: no more necessary starting with innovaphone version 13r3

SIP/TCP yes
SIP/TLS yes

Supported Codecs

G.722 yes
G.711 A-law yes
G.711 y-law yes
G.723.1 yes
G.729A yes
Opus yes

DTMF Support

SIP v1 (RFC2543), v2 (RFC3261)
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO

Support LDAP Phonebook

Support LDAP Phonebook yes

innovaphone Contacts

Access to contact data stored in the innovaphone Contacts Application is possible by use of these configuration instructions.

Configuration

Fanvil IP phone supports multiple SIP configurations

Phone Web Configuration:

a. Press “Down” Buttom when your phone on idle interface, you can get the IP address of the phone, input it to your PC browser.

b. The factory account password of the telephone is admin/admin. Then you can enter the Phone Configuration Interface

1.Login to phone web portal:

2.Network setting:

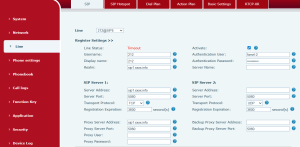

3.Account setting：

Use configuration files:

Fanvil IP phones can be deployed locally or remotely by creating a CFG file and importing the phones in different ways. Please see more details from our knowledge base: Fanvil Knowledge Base

Contact

Company Name:	Fanvil Link Technology Co., Ltd.
Street:	13th Floor, Building 2, Runzhi R&D Center, Xin'an Street, Bao'an District, Shenzhen, China
ZIP/City:	Shenzhen
Country:	China
Phone:	0086-0755-26402199
Mail:	sales@fanvil.com
Support:	support@fanvil.com

Applies To

This information applies to

IP 3000, V4
IP 400, V4
IP 21, V4

Build 01-4001 and later.

More Information

System Requirements

Latest firmwares from Fanvil are preferred.
