fanvil_logo.png/ Product Name Fanvil IP Phones
Certification Status Category SIP hardware and software endpoints
Vendor Fanvil Technology Co., Ltd. (Fanvil) is a leading global provider of Audio&Video-IoT (A&V-IoT) devices. With three R&D centers in Beijing, Shenzhen, and Suzhou, China, Fanvil has compiled an effective team of R&D, production, sales, and service staff to innovate and add value to our business partners. As the pioneer in applying standardized network communication technology and Audio&Video technologies to build A&V-IoT, Fanvil is boosting the digital transformation for multiple industries.
Description
Desk phones
X210-V2
Fanvil X210 enterprise IP phone is designed for business managers and busy office professionals
4.3-inch main color display, 2x3.5-inch side color displays for DSS keys.
20 SIP lines, hotspot.
HD audio on speakerphone and handset.
Built-in Bluetooth 4.2.
Wi-Fi connectivity (Via Wi-Fi Dongle).
6-way audio conference.
Up to 106 DSS keys (42 tri-colored physical keys).
Video Codec H.264 support for receiving video calls.
Dual Gigabit ports, integrated PoE.
Stand with 2 adjustable angles of 40 and 50 degrees. X210-V2 Datasheet
XU Series
X6U V2
X5U V2
X4U V2
X6U V2 is an enterprise IP Phone featuring main color screen and two extended screens IP Phone
4.3-inch main color screen and 2.4-inch extended screen for DSS keys.
HD audio on speaker phone and handset.
Support 6-way audio conference.
5 Line keys on the main display.
12 DSS keys on the extended screen, up to 60 DSS keys via 5 pages.
Built-in Bluetooth 4.2, support Bluetooth headset; support Wi-Fi Dongle.
Support EHS wireless headset.
Dual Gigabit ports, integrated PoE.
Stand with 2adjustable angles of 45 and 50 degrees. X6U V2 Datesheet
X5U V2 is an enterprise IP Phone featuring 3.5-inch main color screen and 2.4-inch extended screen
3.5-inch main color screen and 2.4-inch extended screen for DSS keys.
HD audio on speakerphone and handset.
Support 6-way audio conference.
4 Line keys on the main display.
6 DSS keys on the extended screen, up to30 DSS keys via 5 pages.
Built-in Bluetooth 4.2, support Bluetooth headset; support Wi-Fi Dongle.
Support EHS wireless headset.
Dual Gigabit ports, integrated PoE.
Stand with 2adjustable angles of 45 and 50 degrees. X5U V2 Datasheet
X4U V2 is an enterprise IP Phone featuring 2.8-inch main color screen and 2.4-inch extended screen.
2.8-inch main color screen and 2.4-inch extended screen for DSS keys.
HD audio on speakerphone and handset.
Support 6-wayaudio conference.
3 Line keys on the main display.
6 DSS keys on the extended screen, up to30 DSS keys via 5 pages.
Support EHS wireless headset, Wi-Fi Dongle or BT Dongle.
Dual Gigabit ports, integrated PoE.
Stand with 2adjustable angles of 45 and 50 degrees. X4U V2 Datasheet
V Series
V50P
V60P
V61G
V61W
V50P is a stylish, high-performance entry-level IP phone with a 2.3-inch 132x64 pixel dot-matrixscreen
2.3-inch 132x64 pixel dot-matrix screen
Support audio codec G.722 and Opus, HD audio on speakerphone and handset
Support 6-way Audio Conference
Fast Ethernet - 10/100Mbps Ethernet, integrated PoE
HAC HD voice handset
Two installation methods of desktop stand and wall mountable
Compatible with EHS headset V50P Datesheet
Fanvil V60P is a sleek and reliable basic-level IP phone. It features a 2.4-inch (320x240) color screen
2.4-inch color screen.
Support audio codec G.722 and Opus
HD audio on speakerphone and handset.
Support 6-way Audio Conference.
Fast Ethernet - 10/100Mbps Ethernet, integrated PoE.
HAC HD voice handset
Two installation methods of desktop stand and wall mountable.
Compatible with EHS headset. V60P Datasheet
Fanvil V61G is a stylish and user-friendly IP phone. It features a 2.4-inch (320x240) high-definitioncolorscreen
2.4-inch 320x240 pixel color screen.
Support audio codec G.722 and Opus
HD audio on speakerphone and handset.
Support 6-way audio conference.
Dual Gigabit ports, integrated PoE.
Up to 12 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key. V61G Datasheet
Fanvil V61W is a stylish and user-friendly IP phone. It features a 2.4-inch (320x240) high-definitioncolorscreen
2.4-inch color screen.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset.
Support 6-way Audio conference.
Available to link with security products, can be easily customized into various security solutions for reducinginvestment.
Dual Gigabit ports, integrated PoE.
Built-in 2.4GHz/5GHz Wi-Fi, supporting Wi-Fi 6. Built-in Bluetooth 5.4, supporting Bluetooth wireless headset .
Up to 12 DSS keys, every DSS key can be set as Line/BLF/ V61W Datasheet
V62G
V62W
V62 Pro
V63
v62w.png/ v62_pro.png/ v63.png/
Fanvil V62G is a stylish and user-friendly IP phone. It features a 2.8-inch (320x240) high-definitioncolorscreen
2.8-inch 320x240 pixel color screen.
Up to 21 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset.
Support 6-way audio conference.
Support EHS headset.
Dual Gigabit ports, integrated PoE.
Two installation methods of desktop stand and wall mountable. V62G Datasheet
Fanvil V62W is a stylish and user-friendly IP phone. It features a 2.8-inch (320x240) high-definitioncolorscreen
2.8-inch 320x240 pixel color screen.
Up to 21 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key.
Support audio codec G.722 and Opus
HD audio on speakerphone and handset.
Support 6-way audio conference.
Support EHS headset.
Dual Gigabit ports, integrated PoE.
Built-in 2.4GHz/5GHz Wi-Fi, supporting Wi-Fi 6.
Built-in Bluetooth 5.4, supporting Bluetooth wireless headset.
Two installation methods of desktop stand and wall mountable. V62W Datasheet
Fanvil V62 Pro is an essential business IP phone that features a HD color screen
2.8-inch 320x240 pixel color screen.
Up to 21 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset. S
upport 6-way audio conference .
Support EHS headset.
Dual Gigabit ports, integrated PoE.
Bluetooth wireless handset provides an excellent audio experience for instantly connected, open workspaces.
Two installation methods of desktop stand V62 Pro Datasheet
As the prime business phone featuring 2.8 color screen
2.8-inch color screen.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset.
Support 6-way audio conference.
Available to link with security products, can be easily customized into various security solutions for reducinginvestment.
Dual Gigabit ports, integrated PoE.
Two installation methods of desktop stand and wall mountable.
Up to 21 DSS keys, every DSS key can be set as Line/BLF/ V63 Datasheet
V64
V65
V66
V66 Pro
v64.png/ v65.png/ v66pro.png/
As the prime business phone featuring a 3.5-inch480x320colorLCD screen
3.5-inch color LCD screen.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset.
Support 6-way Audio Conference.
Available to link with security products, can be easily customized into va
rious security solutions for reducinginvestment. Built-in 2.4GHz/5GHz Wi-Fi and Bluetooth 4.2, realizing more flexible connectivity.
Dual Gigabit ports, integrated PoE.
Two installation methods of desktop stand and wall mountable.
Up to 21 DSS keys, every DSS key can be set as Line/BLF/ V64 Datasheet
As the prime business phone featuring an adjustable screen
Antibacterial material of the handset and keypad surface effectively inhibits more than 99.5%of bacteriagrowth.
4.3-inch (480x272) adjustable screen ( 0° to 40 °) for different lighting environments.
Be able to receive video calls with video codec H.264.
Available to link with security products, can be easily customized into various security solutions for reducinginvestment. S
upport audio codec G.722 and Opus, HD audio on speakerphone and handset.
Support 6-way Audio Conference.
Built-in 2.4GHz/5GHz Wi-Fi and Bluetooth 4.2, realizing more flexible connectivity. T
wo installation methods of desktop stand and wall mountable.
Up to 45 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key). V65 Datasheet
V66 features a 7-inch high-definition adjustable color touch screen
Antibacterial material of the handset and keypad surface effectively inhibits more than 99.5%of bacteriagrowth.
7” adjustable color touch screen ( 0° to 40 °) for different lighting environments.
Supports H.264 1080p video decoding, allowing users to monitor the status of the other party in real-timeduringthecall.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset
Support 6-way Audio Conference.
Built-in 2.4GHz/5GHz dual-band Wi-Fi and supports Wi-Fi 6 and Bluetooth 5.4, realizing more flexible connectivity
Two installation methods of desktop stand and wall mountable
Up to 116(29*4) DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key). V66 Datasheet

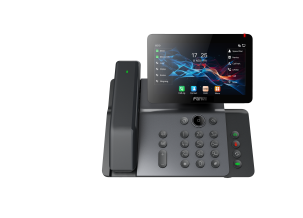

V66 Pro is a color-screen business phone integrating audio
Antibacterial material of the handset and keypad surface effectively inhibits more than 99.5%of bacteriagrowth.
7” adjustable color touch screen ( 0° to 40 °) for different lighting environments.
Supports H.264 1080p video decoding, allowing users to monitor the status of the other party in real-timeduringthecall.
Support audio codec G.722 and Opus, HD audio on speakerphone and handset.
Support 6-way Audio Conference.
Built-in 2.4GHz/5GHz dual-band Wi-Fi and supports Wi-Fi 6 and Bluet
ooth 5.4, realizing more flexible connectivity. Bluetooth wireless handset provides an excellent audio experience for instantly connected, open workspaces.
Two installation methods of desktop stand and wall mountable.
Up to 116(29*4) DSS keys, every DSS key can be set as Line/BLF/ V66 Pro Datasheet
Functions Answer incoming call yes
Initiate outgoing call yes Hold/Retrieve yes
Transfer yes
Call waiting yes
Do not disturb yes
Call Conference yes
Call Park yes
Call Forward and divert yes
Intercom (HS to HS) Called, calling, and connected party information yes
Missed-call notification yes
1-touch speed dial yes
Redial yes
Zero touch provisioning, management, configuration and remote debugging yes
BLF yes innovaphone CTI ready Initiate outgoing call (automatic call with no manual intervention, update of called party, correct call direction in call list) yes
Answer incoming call yes
Hold/Retrieve yes
Transfer yes innovaphone Reverse Proxy ready STUN yes
SIP/TCP yes
SIP/TLS yes innovaphone WebRTC ready Codec G.711 yes
Codec OPUS yes Supported Codecs G.722 yes
G.711 A-law yes
G.711 y-law yes
G.723.1 (53) yes
G.729A yes
Opus yes DTMF Support SIP v1 (RFC2543), v2 (RFC3261)
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO Supports RFC3261 Digest Authentication Scheme (Section 22.4) Supports RFC3261 Digest Authentication Scheme (Section 22.4) yes Support LDAP Phonebook Support LDAP Phonebook yes Version Product versions used for interop testing:
X301/X301P,X301G,X301W 2.12.22.2
X303/X303P,X303G,X303W,X303W 2.12.22.2
X3UPro 2.12.22.2
X4U V2,X5U V2,X6U V2,X7 V2，X7C V2，X210 V2 2.12.22.2
V50P 2.12.20.17
V60P,V61G,V61W,V62G,V62W,V62ProV63,V64 2.12.20.19
V65 2.12.22.2
V66, V66Pro 2.12.20.7
3rd-Pty-Product Version: Latest firmwares from Fanvil are preferred.
innovaphone V12r2sr24 Configuration Fanvil IP phone supports multiple SIP configurations
Phone Web Configuration:
a. Press “Down” Buttom when your phone on idle interface, you can get the IP address of the phone, input it to your PC browser.
b. The factory account password of the telephone is admin/admin. Then you can enter the Phone Configuration Interface
1.Login to phone web portal:
web_login.png/ 2.Network setting:
stun.png/ 3.Account setting：
sip.png/ 4.Register successful
registered1.png/
Use configuration files:
Fanvil IP phones can be deployed locally or remotely by creating a CFG file and importing the phones in different ways. Please see more details from our knowledge base: Fanvil Knowledge Base
Configuration file template
As we said before, you can create a CFG file and import it to your phone to make all setting done. And here is an example for your reference:
################################################################################
net.WANTYPE = 0
net.dhcp.Enabled = 1
net.dhcp.AutoDNS = 1
net.dhcp.AutoSNTP = 0
net.dhcp.DHCPOption100-101 = 1
net.dhcp.UseVerndorClassID = 0
net.dhcp.Hostname = Model
net.dhcp.VendorClassID = Fanvil Model
sip.line.1.AlwaysFWDNum =
sip.line.1.BusyFWDNum =
sip.line.1.NoAnswerFWDNum =
sip.line.1.FWDTimer = 5
sip.line.1.HotlineNum =
sip.line.1.HotlineEnabled = 0
sip.line.1.HotlineTimeout = 0
web.WebPort = 80
web.HttpsWebPort = 443
web.LogonTimeout = 15
web.account.1.Name = admin
###web.account.1.Password = (your password)
web.account.1.Level = 10
web.account.2.Name = guest
###web.account.2.Password = (your password)
web.account.2.Level = 5
