Product Name

Fanvil IP Phones

Category

SIP hardware and software endpoints

Vendor

Fanvil Technology Co., Ltd. (Fanvil) is a leading global provider of Audio&Video-IoT (A&V-IoT) devices. With three R&D centers in Beijing, Shenzhen, and Suzhou, China, Fanvil has compiled an effective team of R&D, production, sales, and service staff to innovate and add value to our business partners. As the pioneer in applying standardized network communication technology and Audio&Video technologies to build A&V-IoT, Fanvil is boosting the digital transformation for multiple industries.

Description

Desk phones
V Series IP Phone

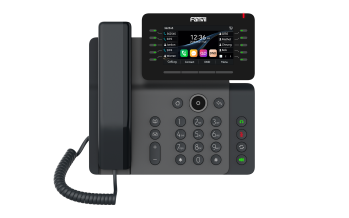

V66	V66 Pro	V65	V64
xn--v66---241014-hi6to93c0n5cjm7fpjya.png/	v66_-pro.png/	v65.png/	v64.png/

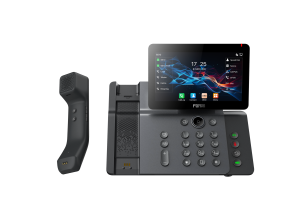

V66 features a 7-inch high-definition adjustable color touch screen Antibacterial material of the handset and keypad surface effectively inhibits more than 99.5%of bacteriagrowth. 7” adjustable color touch screen ( 0° to 40 °) for different lighting environments. Supports H.264 1080p video decoding, allowing users to monitor the status of the other party in real-timeduringthecall. Support audio codec G.722 and Opus, HD audio on speakerphone and handset Support 6-way Audio Conference. Built-in 2.4GHz/5GHz dual-band Wi-Fi and supports Wi-Fi 6 and Bluetooth 5.4, realizing more flexible connectivity Up to 116(29*4) DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key). V66 Datasheet	V66 Pro is a color-screen business phone integrating audio Antibacterial material of the handset and keypad surface effectively inhibits more than 99.5%of bacteriagrowth. 7” adjustable color touch screen ( 0° to 40 °) for different lighting environments. Supports H.264 1080p video decoding, allowing users to monitor the status of the other party in real-timeduringthecall. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. Support 6-way Audio Conference. Built-in 2.4GHz/5GHz dual-band Wi-Fi and supports Wi-Fi 6 and Bluetooth 5.4 Up to 116(29*4) DSS keys, every DSS key can be set as Line/BLF/ V66 Pro Datasheet	As the prime business phone featuring an adjustable screen Antibacterial material of the handset and keypad surface effectively inhibits more than 99.5%of bacteriagrowth. 4.3-inch (480x272) adjustable screen ( 0° to 40 °) for different lighting environments. Be able to receive video calls with video codec H.264. Available to link with security products, can be easily customized into various security solutions for reducinginvestment. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. Support 6-way Audio Conference. Built-in 2.4GHz/5GHz Wi-Fi and Bluetooth 4.2, realizing more flexible connectivity. Up to 45 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key). V65 Datasheet	As the prime business phone featuring a 3.5-inch480x320colorLCD screen 3.5-inch color LCD screen. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. Support 6-way Audio Conference. Built-in 2.4GHz/5GHz Wi-Fi and Bluetooth 4.2, realizing more flexible connectivity. Dual Gigabit ports, integrated PoE. Two installation methods of desktop stand and wall mountable. Up to 21 DSS keys, every DSS key can be set as Line/BLF/ V64 Datasheet

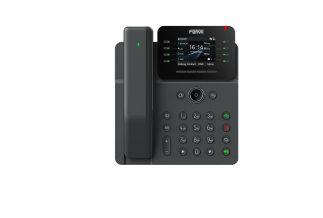

V63	V62G	V62W	V62 Pro
v63.png/	v62w.png/		v62_pro.png/

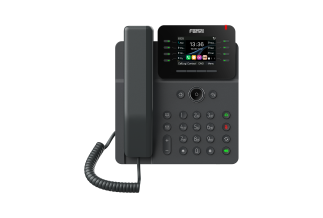

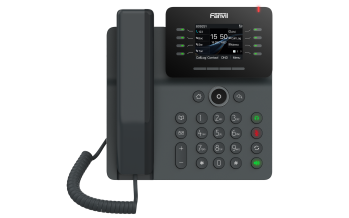

As the prime business phone featuring 2.8 color screen 2.8-inch color screen. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. Support 6-way audio conference. Dual Gigabit ports, integrated PoE. Two installation methods of desktop stand and wall mountable. Up to 21 DSS keys, every DSS key can be set as Line/BLF/ V63 Datasheet	Fanvil V62G is a stylish and user-friendly IP phone. 2.8-inch 320x240 pixel color screen. Up to 21 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. Support 6-way audio conference. Support EHS headset. Dual Gigabit ports, integrated PoE. Two installation methods of desktop stand and wall mountable. V62G Datasheet	Fanvil V62W is a stylish and user-friendly IP phone. 2.8-inch 320x240 pixel color screen. Up to 21 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key. Support audio codec G.722 and Opus HD audio on speakerphone and handset. Support 6-way audio conference. Support EHS headset. Dual Gigabit ports, integrated PoE. Built-in 2.4GHz/5GHz Wi-Fi, supporting Wi-Fi 6. Built-in Bluetooth 5.4, supporting Bluetooth wireless headset. Two installation methods of desktop stand and wall mountable. V62W Datasheet	Fanvil V62 Pro is an essential business IP phone that features a HD color screen 2.8-inch 320x240 pixel color screen. Up to 21 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. S upport 6-way audio conference . Support EHS headset. Dual Gigabit ports, integrated PoE. Bluetooth wireless handset provides an excellent audio experience for instantly connected, open workspaces. Two installation methods of desktop stand V62 Pro Datasheet

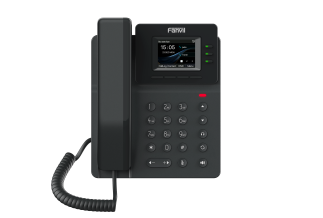

V61G	V61W	V60P	V50P

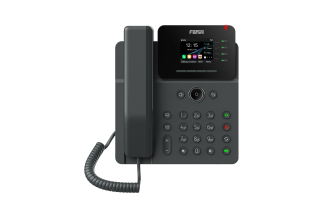

Fanvil V61G is a stylish and user-friendly IP phone. It features a 2.4-inch (320x240) high-definitioncolorscreen 2.4-inch 320x240 pixel color screen. Support audio codec G.722 and Opus HD audio on speakerphone and handset. Support 6-way audio conference. Dual Gigabit ports, integrated PoE. Up to 12 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key. V61G Datasheet	Fanvil V61W is a stylish and user-friendly IP phone. It features a 2.4-inch (320x240) high-definitioncolorscreen 2.4-inch color screen. Support audio codec G.722 and Opus, HD audio on speakerphone and handset. Support 6-way Audio conference. Available to link with security products, can be easily customized into various security solutions for reducinginvestment. Dual Gigabit ports, integrated PoE. Built-in 2.4GHz/5GHz Wi-Fi, supporting Wi-Fi 6. Built-in Bluetooth 5.4, supporting Bluetooth wireless headset . Up to 12 DSS keys, every DSS key can be set as Line/BLF/ V61W Datasheet	Fanvil V60P is a sleek and reliable basic-level IP phone. It features a 2.4-inch (320x240) color screen 2.4-inch color screen. Support audio codec G.722 and Opus HD audio on speakerphone and handset. Support 6-way Audio Conference. Fast Ethernet - 10/100Mbps Ethernet, integrated PoE. HAC HD voice handset Compatible with EHS headset. V60P Datasheet	V50P is a stylish, high-performance entry-level IP phone with a 2.3-inch 132x64 pixel dot-matrixscreen 2.3-inch 132x64 pixel dot-matrix screen Support audio codec G.722 and Opus, HD audio on speakerphone and handset Support 6-way Audio Conference Fast Ethernet - 10/100Mbps Ethernet, integrated PoE HAC HD voice handset Two installation methods of desktop stand and wall mountable Compatible with EHS headset V50P Datesheet
LINKVlL Wireless UC Products
W610W	W611W	W620W
fanvil_w610w.png/	w611w-v2.png/	fanvil_w620w.png/

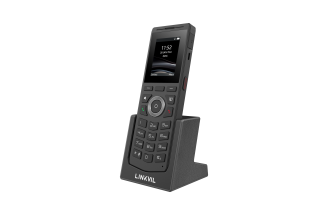

LINKVIL W610W is a portable enterprise-grade Wi-Fi IP phone 2" 240x320 color screen with intuitive user interface Built-in dual-band Wi-Fi (2.4G/5G) Incoming call vibration Up to 16 DSS keys, quick access to basic functions Built-in Bluetooth 5.0 can be used to connect wireless earphone No operation screen after 10 seconds during a call One configurable push-to-talk (PTT) button for quick dial, quick intercom, and quick multicast Up to 9 hours' talk time and up to 200 hours standby time The data is based on the laboratory test W610W Datasheet	LINKVIL W611W is a portable, elegant Wi-Fi phone, certified to IP67 standard 2.4" 240x 320 color screen High protection level of IP67, which is waterproof, dustproof, and drop-safe from 1.8-meter height Up to 16 DSS keys, quick access to basic functions Support sidetone function Incoming call vibration Support dual-band Wi-Fi 802.11 a/b/g/n/ac/ax (Wi-Fi 6, 2.4G & 5G) Built-in Bluetooth 5.0 Support gravity sensor and the screen will be on when the phone is raised or put down during a call One configurable push-to-talk (PTT) button for quick dial, quick intercom, and quick multicast Up to 9 hours' talk time and up to 200 hours standby time The data is based on the laboratory test W611W Datasheet	LINKVIL W620W is a portable enterprise-grade Wi-Fi IP phone 2.4" 240x320 color screen Supports H.264 4CIF video decoding Built-in dual-band Wi-Fi 6 (2.4GHz/5GHz) delivers HD audio with noise reduction Support incoming call vibration Drop-safe from 1.8-meter height Built-in Bluetooth 5.0 Support 16 DSS Keys, 1 Programmable Key and 1 PTT key Up to 13 hours' talk time and up to 240 hours standby time The data is based on the laboratory test W620W Datasheet
XU Series IP Phone
X6U V2	X5U V2	X4U V2	X210-V2
X6U V2 is an enterprise IP Phone featuring main color screen and two extended screens IP Phone 4.3-inch main color screen and 2.4-inch extended screen for DSS keys. HD audio on speaker phone and handset. Support 6-way audio conference. 5 Line keys on the main display. 12 DSS keys on the extended screen, up to 60 DSS keys via 5 pages. Built-in Bluetooth 4.2, support Bluetooth headset; support Wi-Fi Dongle. Support EHS wireless headset. Dual Gigabit ports, integrated PoE. Stand with 2adjustable angles of 45 and 50 degrees. X6U V2 Datesheet	X5U V2 is an enterprise IP Phone featuring 3.5-inch main color screen and 2.4-inch extended screen 3.5-inch main color screen and 2.4-inch extended screen for DSS keys. HD audio on speakerphone and handset. Support 6-way audio conference. 4 Line keys on the main display. 6 DSS keys on the extended screen, up to30 DSS keys via 5 pages. Built-in Bluetooth 4.2, support Bluetooth headset; support Wi-Fi Dongle. Support EHS wireless headset. Dual Gigabit ports, integrated PoE. Stand with 2adjustable angles of 45 and 50 degrees. X5U V2 Datasheet	X4U V2 is an enterprise IP Phone featuring 2.8-inch main color screen and 2.4-inch extended screen. HD audio on speakerphone and handset. Support 6-wayaudio conference. 3 Line keys on the main display. 6 DSS keys on the extended screen, up to30 DSS keys via 5 pages. Support EHS wireless headset, Wi-Fi Dongle or BT Dongle. Dual Gigabit ports, integrated PoE. Stand with 2adjustable angles of 45 and 50 degrees. X4U V2 Datasheet	Fanvil X210 enterprise IP phone is designed for business managers and busy office professionals 4.3-inch main color display, 2x3.5-inch side color displays for DSS keys. 20 SIP lines, hotspot. HD audio on speakerphone and handset. Built-in Bluetooth 4.2. Wi-Fi connectivity (Via Wi-Fi Dongle). 6-way audio conference. Up to 106 DSS keys (42 tri-colored physical keys). Video Codec H.264 support for receiving video calls. Dual Gigabit ports, integrated PoE. Stand with 2 adjustable angles of 40 and 50 degrees. X210-V2 Datasheet
H Series Hotel IP Phone
H2U-V2	H2U-V2 Red
h2u-v2.png/	h2u_red.png/
Fanvil H2U-V2 compact IP phone possesses brand features including 2 SIP lines, 10 speed dial keys, 1 programmable DSS key and a HD speaker on handset. Delicate and fashion outlook. Easy installation and configuration. Cost-effective model & Environmental friendly design. 10 speed dial keys, long press numeric keypad to achieve speed dial 1 programmable DSS key. 10/100Mbps Ethernet, support PoE power supply. Support the install mode of desktop or wall-mounted H2U-V2 Datasheet	Fanvil H2U-V2 Red 4 buttons compact IP phone possesses brand features including 2 SIP lines, 4 speed dial keys, and a HD speaker on handset. Delicate and fashion outlook. Easy installation and configuration. 4 speed dial keys 10/100Mbps Ethernet, support PoE power supply. Support the install mode of desktop or wall-mounted

Functions

• Answer incoming call =yes
• Initiate outgoing call =yes

• Hold/Retrieve =yes
• Transfer =yes
• Call waiting= yes
• Do not disturb = yes
• Call Conference = yes
• Call Park= yes
• Message WaitingIndicator- status= yes
• Call Forward and divert= yes
• Intercom (HS to HS) = yes
• Called, calling, and connected party information= yes
• Missed-call notification= yes
• 1-touch speed dial= yes
• Redial = yes
• Background Upgrades=yes
• Zero touch provisioning, management, configuration and remote debugging = yes
• BLF = yes

innovaphone CTI ready

• Initiate outgoing call (automatic call with no manual intervention, update of called party, correct call direction in call list) =yes
• Answer incoming call =yes
• Hold/Retrieve =yes
• Transfer =yes

innovaphone Reverse Proxy ready

• STUN=yes
• SIP/TCP =yes
• SIP/TLS =yes

innovaphone WebRTC ready

• Codec G.711=yes
• Codec OPUS =yes

Supported Codecs

• G.722 =yes
• G.711 A-law =yes
• G.711 y-law =yes
• G.723.1 (53) =yes
• G.729A =yes
• Opus =yes

DTMF Support

• SIP v1 (RFC2543), v2 (RFC3261)
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO

Supports RFC3261 Digest Authentication Scheme (Section 22.4)

• Supports RFC3261 Digest Authentication Scheme (Section 22.4) =yes

Support LDAP Phonebook

• Support LDAP Phonebook=yes

Version

Product versions used for interop testing:

X4U V2,X5U V2,X6U V2,X210 V2 2.12.22.2

V50P 2.12.20.17

V60P,V61G,V61W,V62G,V62W,V62ProV63,V64 2.12.20.19

V65 2.12.22.2

V66, V66Pro 2.12.20.7

H2U-V2 2.12.20.2

H2U-V2 Red 2.12.2.5

W611W 2.14.4

W620W 2.16.19

• 3rd-Pty-Product Version: Latest firmwares from Fanvil are preferred.
• innovaphone V12r2sr24

Configuration

Fanvil IP phone supports multiple SIP configurations

Phone Web Configuration:

a. Press “Down” Buttom when your phone on idle interface, you can get the IP address of the phone, input it to your PC browser.

b. The factory account password of the telephone is admin/admin. Then you can enter the Phone Configuration Interface

1.Login to phone web portal:

web_login.png/

2.Network setting:

stun.png/

3.Account setting：

sip.png/

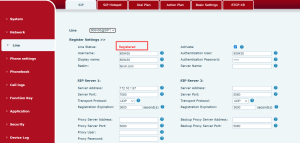

4.Register successful

registered1.png/

Use configuration files:

Fanvil IP phones can be deployed locally or remotely by creating a CFG file and importing the phones in different ways. Please see more details from our knowledge base: Fanvil Knowledge Base

Configuration file template

As we said before, you can create a CFG file and import it to your phone to make all setting done. And here is an example for your reference:

################################################################################ net.WANTYPE = 0 net.dhcp.Enabled = 1 net.dhcp.AutoDNS = 1 net.dhcp.AutoSNTP = 0 net.dhcp.DHCPOption100-101 = 1 net.dhcp.UseVerndorClassID = 0 net.dhcp.Hostname = Model net.dhcp.VendorClassID = Fanvil Model sip.line.1.AlwaysFWDNum = sip.line.1.BusyFWDNum = sip.line.1.NoAnswerFWDNum = sip.line.1.FWDTimer = 5 sip.line.1.HotlineNum = sip.line.1.HotlineEnabled = 0 sip.line.1.HotlineTimeout = 0 web.WebPort = 80 web.HttpsWebPort = 443 web.LogonTimeout = 15 web.account.1.Name = admin ###web.account.1.Password = (your password) web.account.1.Level = 10 web.account.2.Name = guest ###web.account.2.Password = (your password) web.account.2.Level = 5

Any question please contact us

Support: https://kb.fanvil.com
